5th Generation Digital Multimeter Black Color

GVDA 5th Generation Digital Multimeter Black Color Digital True RMS AC DC Ohm Hz Diode Capacitance Tester Smart Voltage Meter 6000 Counts Digital Multimetro

 Highlights

1) 1.8cm Super thin and 2.88inch Larger LCD display

2) Maximum display: Maximum 6000 Counts display

3) Intelligent identification and manual function are integrated

4) Sampling Rate: About 3 times per second

5) Over range display: the highest position shows "OL"

6) Low voltage display: low battery indication

7) Working environment: (0-40) degree ,relative humidity ＜80 percent

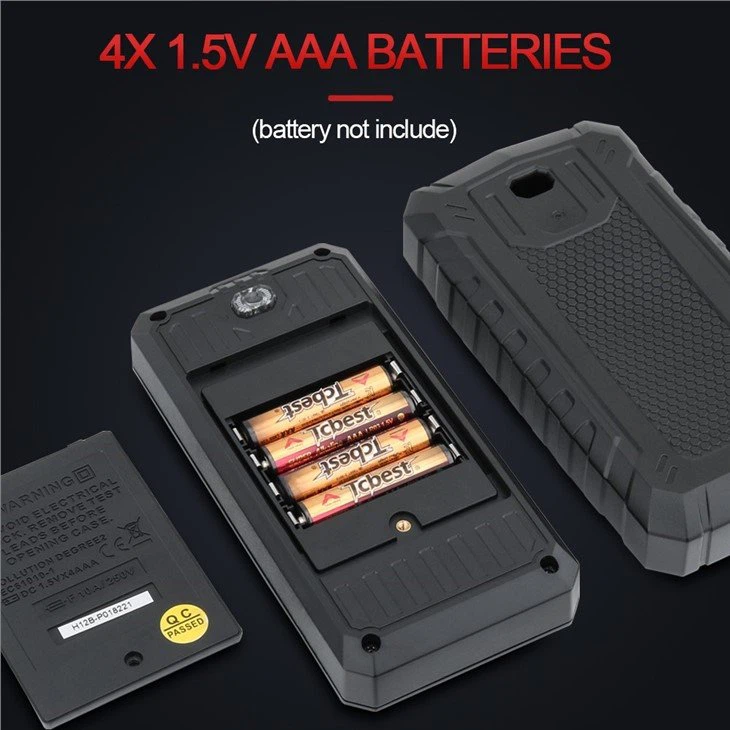

8) Power Supply: 4pcs AAA Batteries ( Not include)

9) It is a stable performance, high precision, high reliability clear readings, and overload protection.

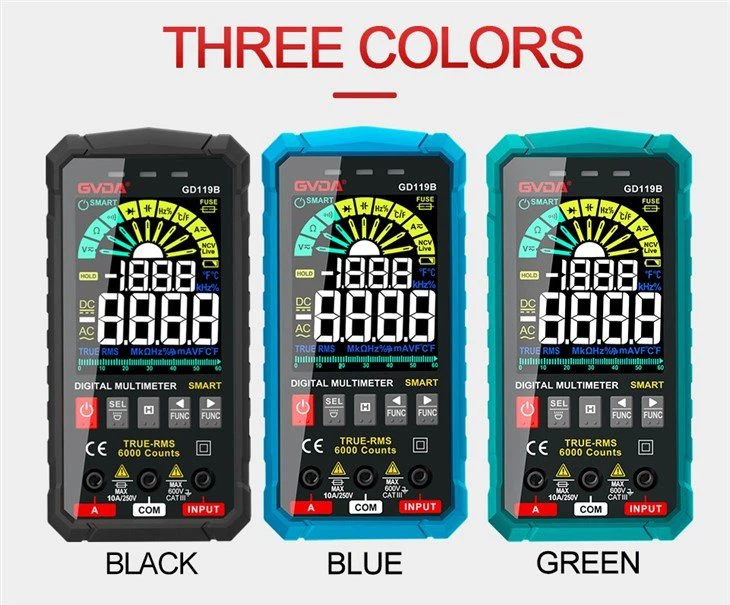

10) For Silicon protective have 3 colors Black Blue Green for choice

Tech Details

5th Generation Digital Multimeter
Model name: GD119B

DC Voltage:600mV/6V/60V/600V ±(0.5 percent plus 3)

AC Voltage:6V/60V/600V ±(0.8 percent plus 3)

DC Current:600mA/6A/10A ±(1.2 percent plus 3);

AC Current:600mA/6A/10A ±(1.2 percent plus 3);

Resistance:600/6k/60k/600kOHM ±(1.0 percent plus 5);

6m/60mOHM ±(1.5 percent plus 10)

Capacitance:6nF/60nF/600nF/6uF/60uF/600uF ±(4.0 percent plus 5);

6mF/60mF ±(5.0 percent plus 5)

Frequency:6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1.0 percent plus 3)

Duty:1.0 percent -99.0 percent ±(1.0 percent plus 3)

Temperature :-401000 degree ; -40-1832 degree F 2 degree

Counts: 6000counts

Display: VA HD Colour Display

Smart Function(AC/DC Voltage,resistance and continuity):yes

Auto Identification of current input:yes

Relative Measurement:yes

Max/Min/Avg.:yes

NCV/Live/Continuity test:yes(sound and light alarm)

Diode test:yes(sound alarm)

Bargraph/Data hold /True RMS:yes

Fuse Burning Prompt:yes

Input Jack LED indication:yes

Low battery indication:yes

Auto power off:yes

Flashlights:yes

Power supply:4pcs AAA Batteries (not include)

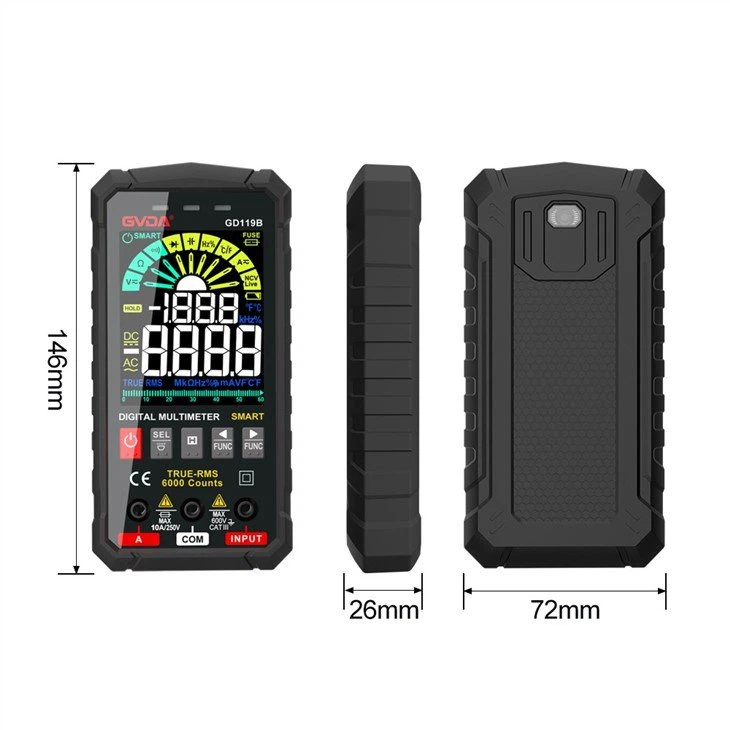

Product Size:113x68x19mm

Package Size:170x95x50mm

Package Weight:about 400g

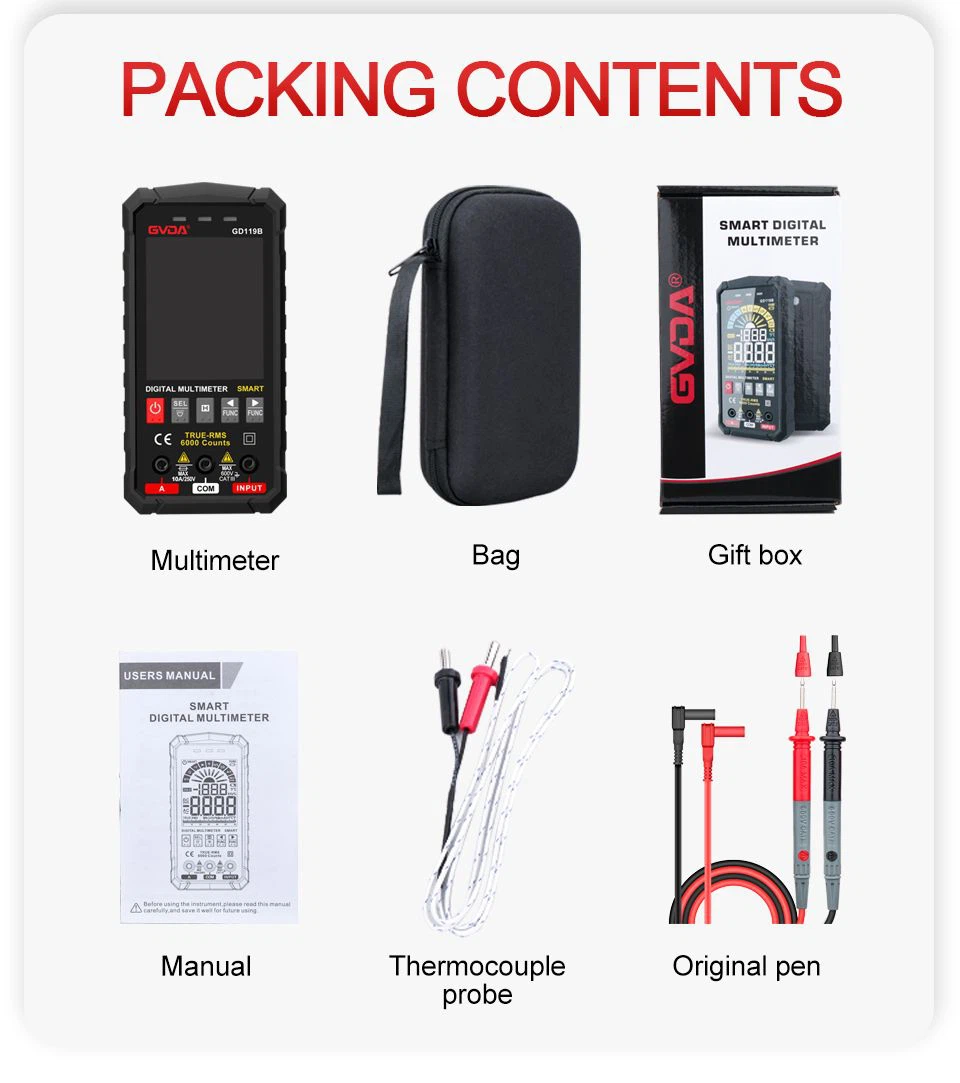

Packing Contents

1pc Multimeter

1pc pen cable

1pc cloth bag

1pc Thermocouple probe

 Product Details

5th Generation Digital Multimeter Black Color

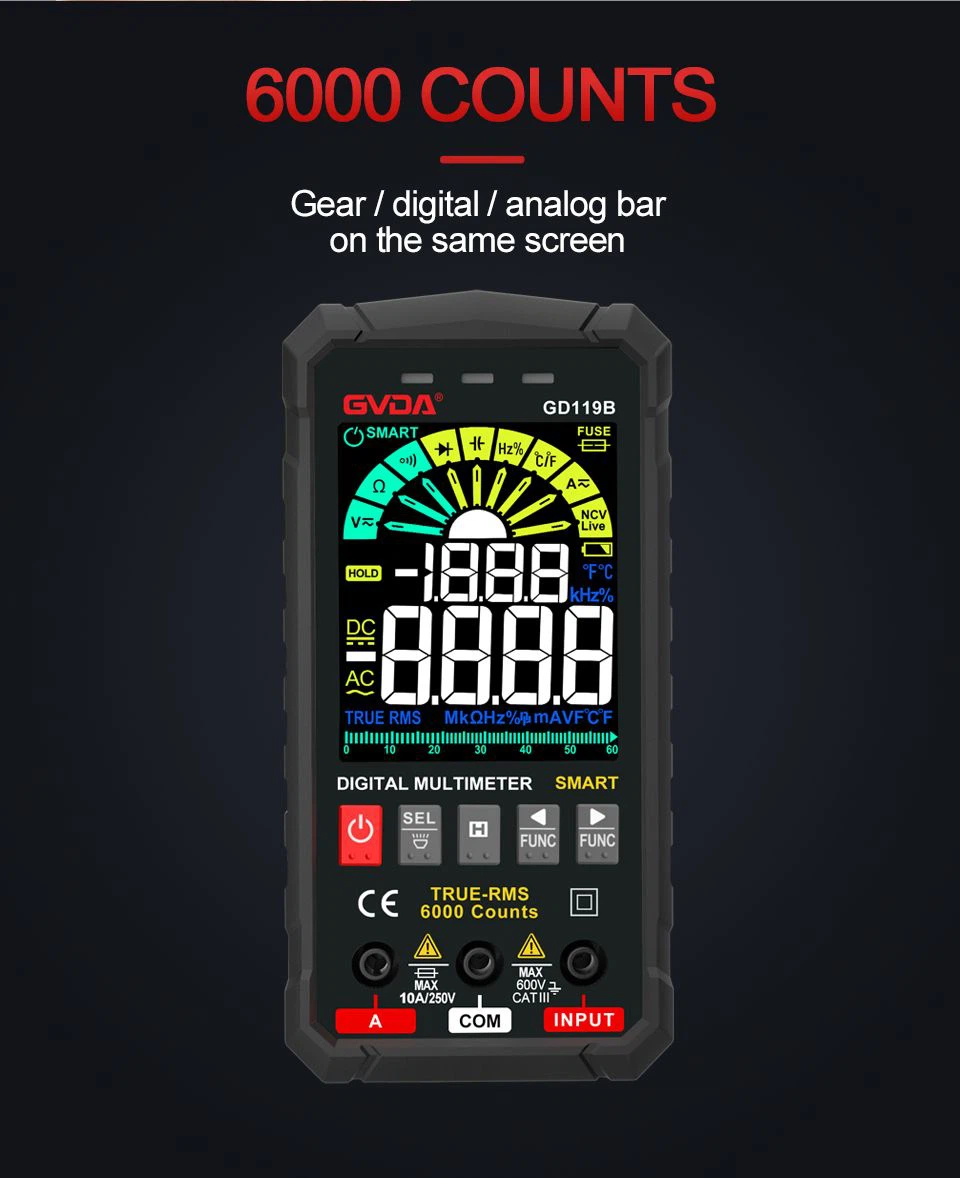

6000 Counts Display VA COLOR LCD

Gear / digital /analog bar on the same screen

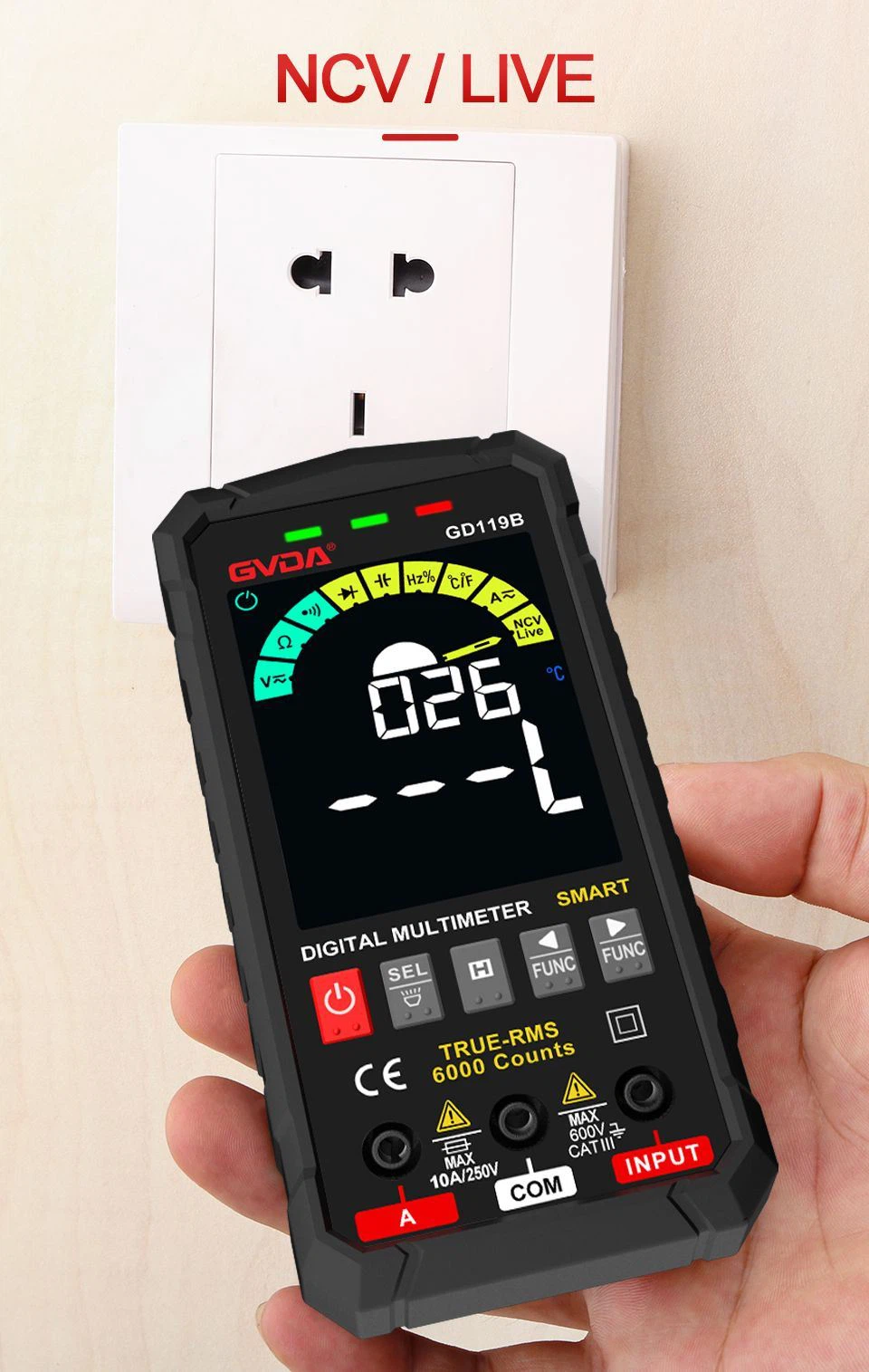

NCV Live Measurement

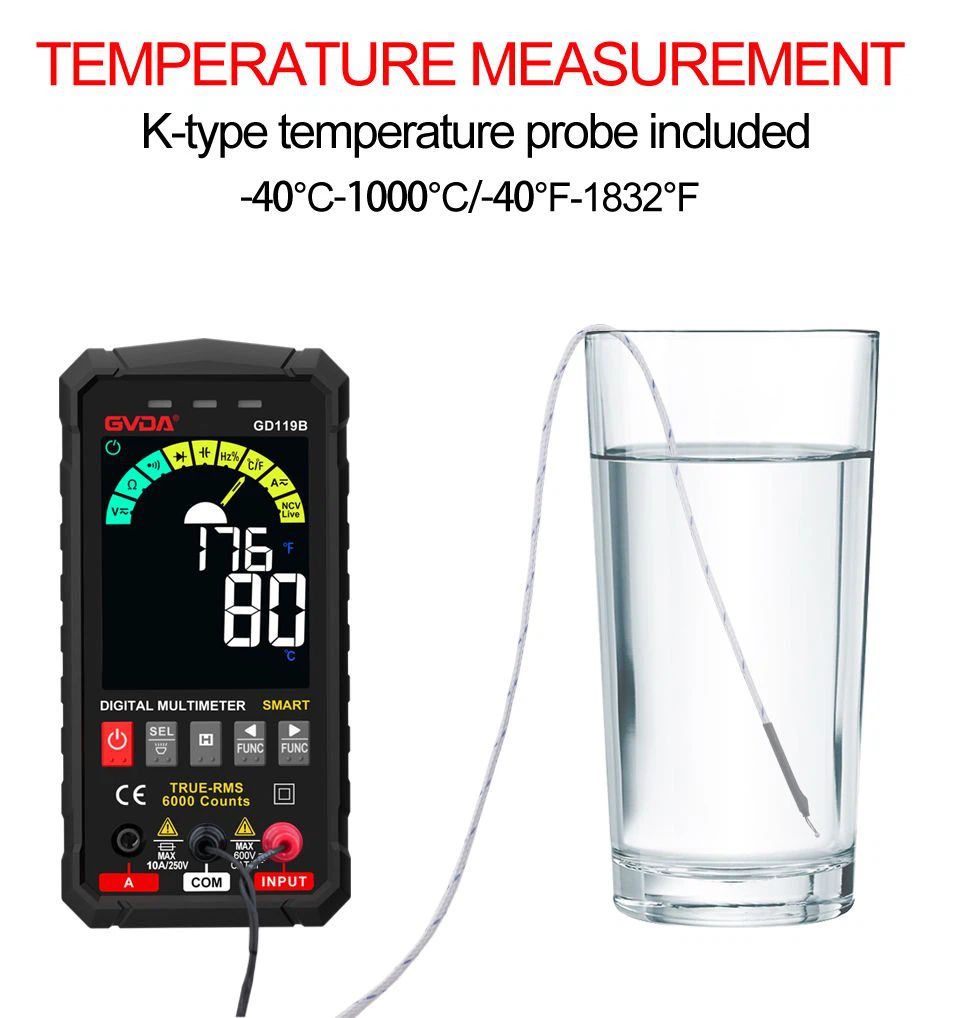

Temperature Measurement

K-TYPE temperature probe included -40 1000 degree

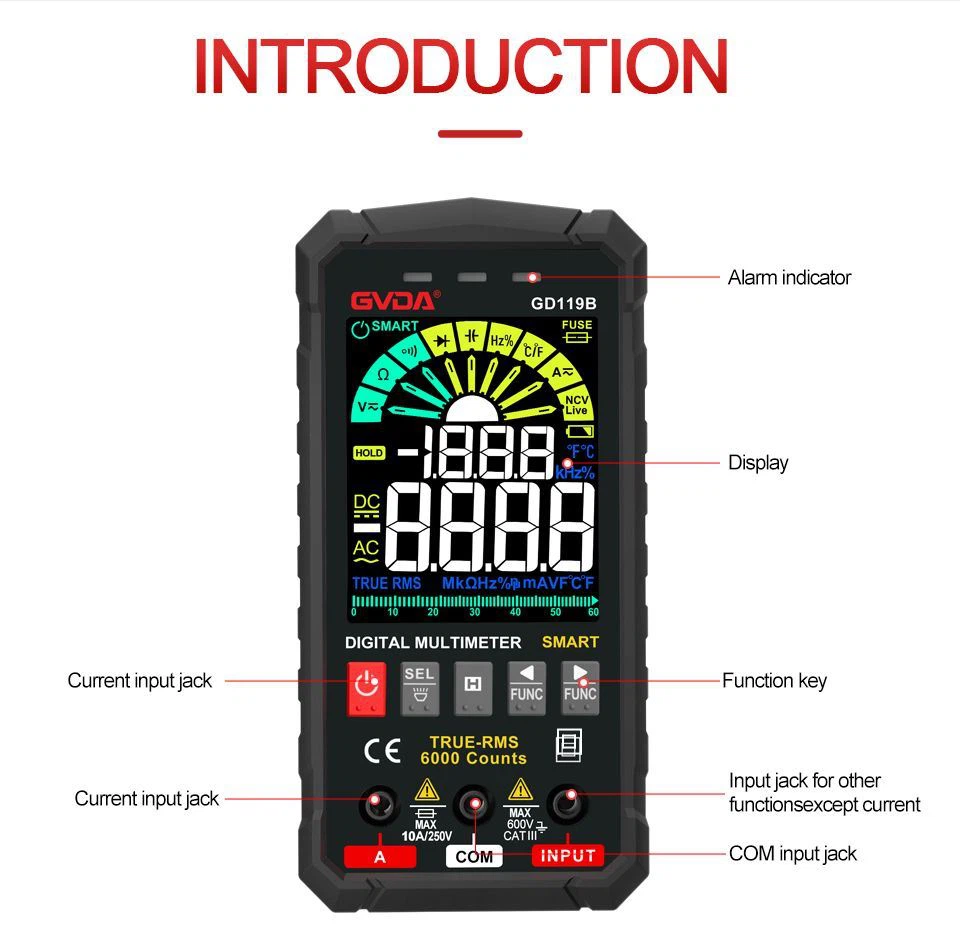

Product Diagram

Packing Details

 FAQ

1. Q: What's the warranty of the product?

We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.

2.Can I mix modelscolors ?
Yes, sure, mixed orders or colors are acceptable. You can leave us a message about what modelscolors you may need. But if youwould like to take different models,please kindly send us an email.

3. Can your products meet the national association standards?

Sure, we can provide the corresponding compliance test report

4. What is the shipping cost?

When we send the shipping cost to you, we always offer the cheapest and safest courier by comparing.
